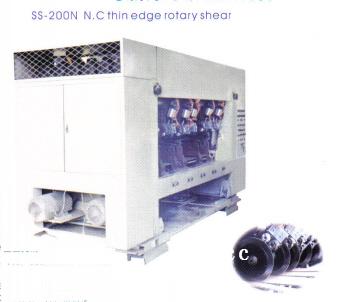

SS-200N N.C thin edge rotary shear

chinese-girl

Commodity:SS-200N N.C thin edge rotary shear

Descriptions: Maximum speed designed:200m/minute

Adopt thin edge high speed slittir,the incisions are level up and velvet. The upper edge wheel,upper pressing marker wheel adopt pneumatic control of lift-lower,there is no need to cut off the cardboard while changing order. N.C automatic follow the production speed,to assure inphase with it. Entire machine is able to make electromotion movement in shaft direction left/right 90mm,assort low breadth excursion efficiently. Auto-grinding edge system can be realized in the process of production,non-stop machine grinding edge,grinding edge set are enacted at any moment of the interval meter and the grinding time by material and condition of hem. Electromotion control can proceed arranging edge and changing order at mean time with non-stop machine,this will realize highspeed changing order,improve production efficiency. Edge seat adopts electromotion drive with brake,realize high-speed arranging edge and precision orientation,arranging edge time13 seconds,and the clearance of pressing can be auto-adjusted. Computer reserve groups of orders,output any set of order as requested of practice. Expiry width:1400mm-2200mm

Quantity:

Packing:
