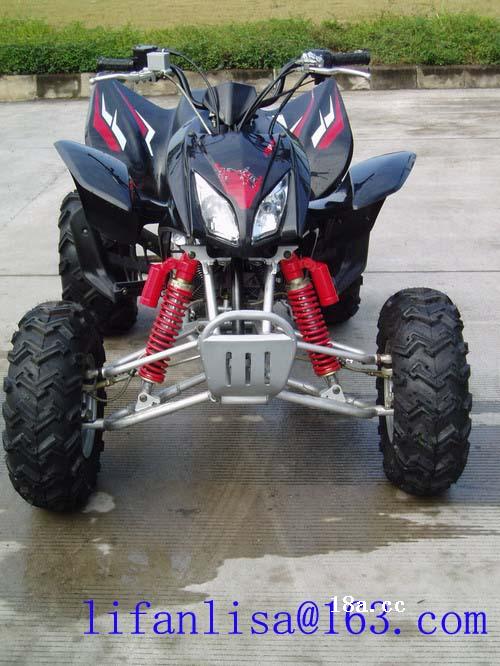

Commodity: ATV Descriptions: QP250ST-9A Engine type: Vertical , single cylinder, 4 stroke, manual single clutch Cooling: Water cooling with fan Start method: electric/ Hand pulled recoil starter Bore x Stroke (mm): 72X61.2mm Displacement (ml): 249.2ml Compression ratio: 10.3:1 Max power (kw/r/min) : 14kw/7500r/min+- 500r/min Rated power: 12kw/7000r/min+- 500r/min Max torque (n.m/r/min): 18.2N•m/5500r/min+- 500r/min Idle Speed(r/min): 1200r/min+- 100r/min Lowest oil consume : <;=354g/k.w.h Spark plug: TCI D8TC Clutch type: wet multi-chips Gearshift mode: 5 gears 1 N 2 3 4 5 Fuel type: RQ-93 Lubrication: depress splash, inner and outer rotor Carburetor mode: MV30PIA Break type (front / rear): disk / disk Brake distance : 30km/h<;=7m Transmission : chain Axle base (mm): 1270mm+-20mm Tyre size(front / rear): 23x7-10; 22X10-10cm Climb degree: Max speed (km/h): 70km/h Fuel tank capacity: 14.8L Net weight : 215kgs Max load : 150kg Hub: alloy/casting steel Frame: steel welding Plastics: PP material or carbon fiber Fr.absorber : outer air chamber , oil and air damping Rr.absorber : outer air chamber, oil and air damping Battery specification: 12V14Ah Package dimension: 1700X1020X860mm Loading: 20 : 12units; 40±FCL: 24units; 40±HQ: 36units Quality/Safety Certifications: Quantity: Packing: Metal frame with carton Contact information Contact: lifanlisa@163.com Address: Jiangmen Tel: 0086-750-8263650 Fax: 0086-750-8263818 Mobile: 0086-13286114675
|
